Baggage Hall, Dublin Airport

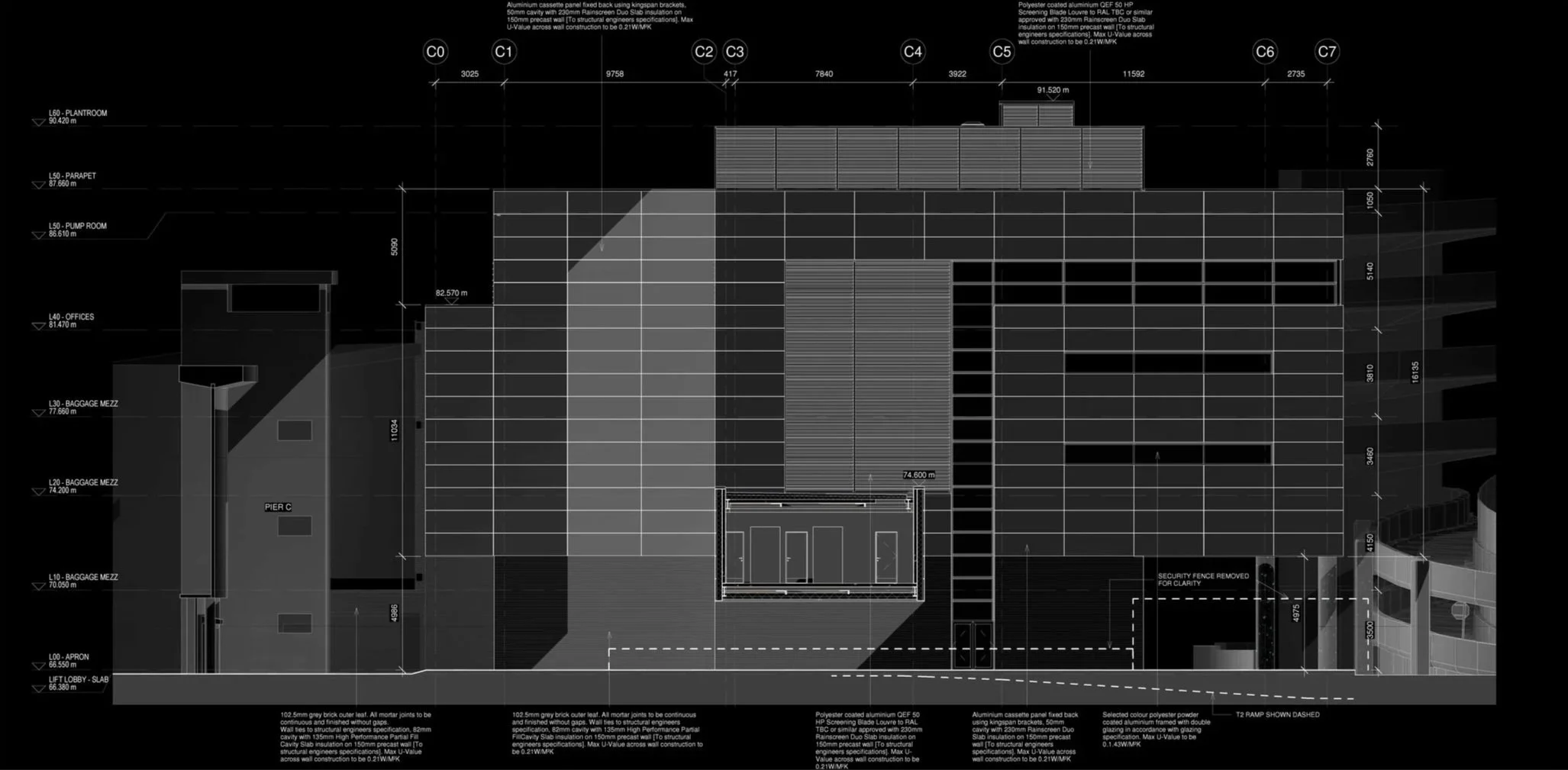

Architectural blueprint of a building facade with detailed measurements, labels for different sections like offices, baggage areas, and the lobby, and technical notes about materials and construction specifications.

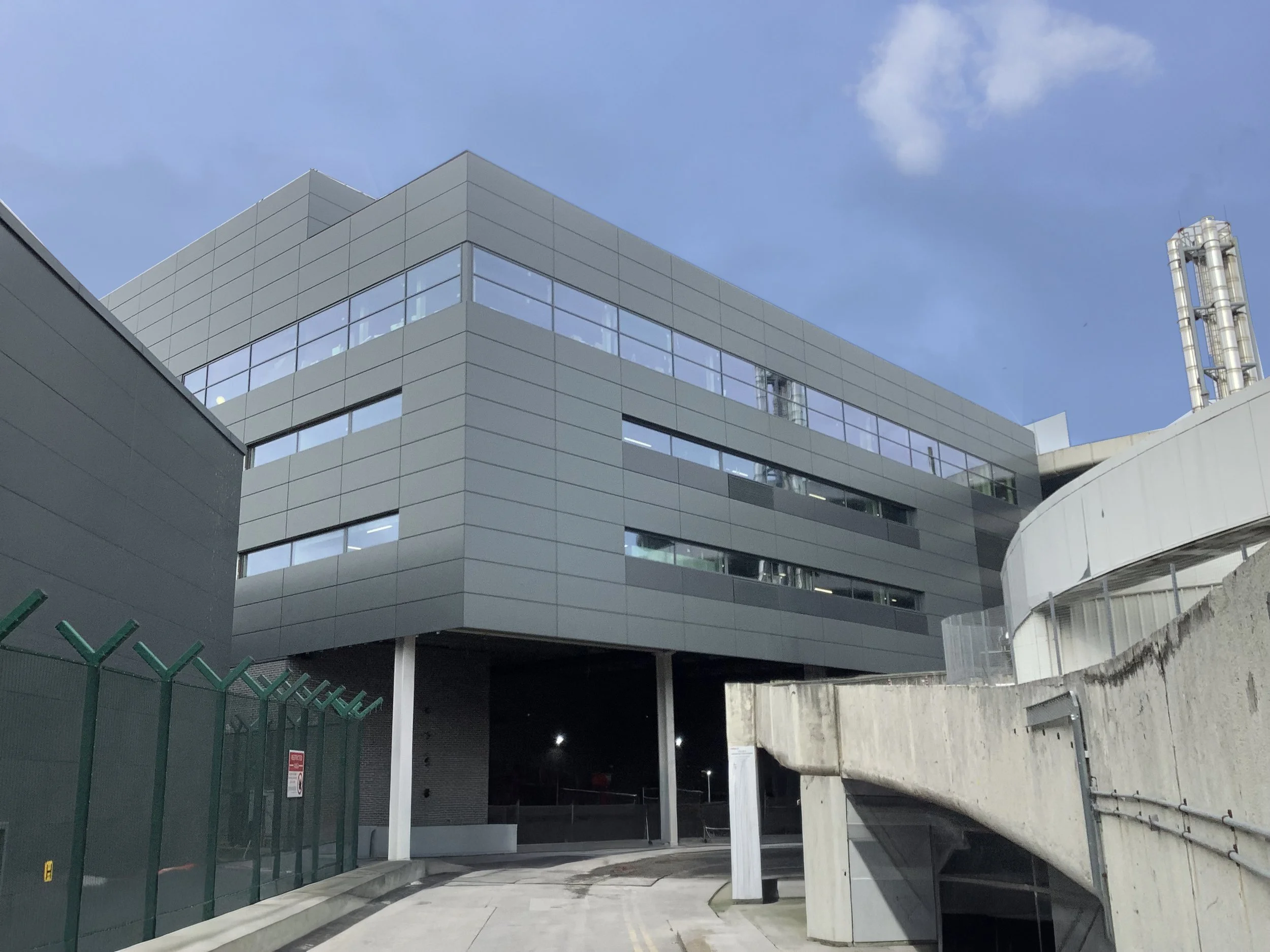

Modern multi-story building with gray exterior panels and large windows, under a blue sky with some clouds.

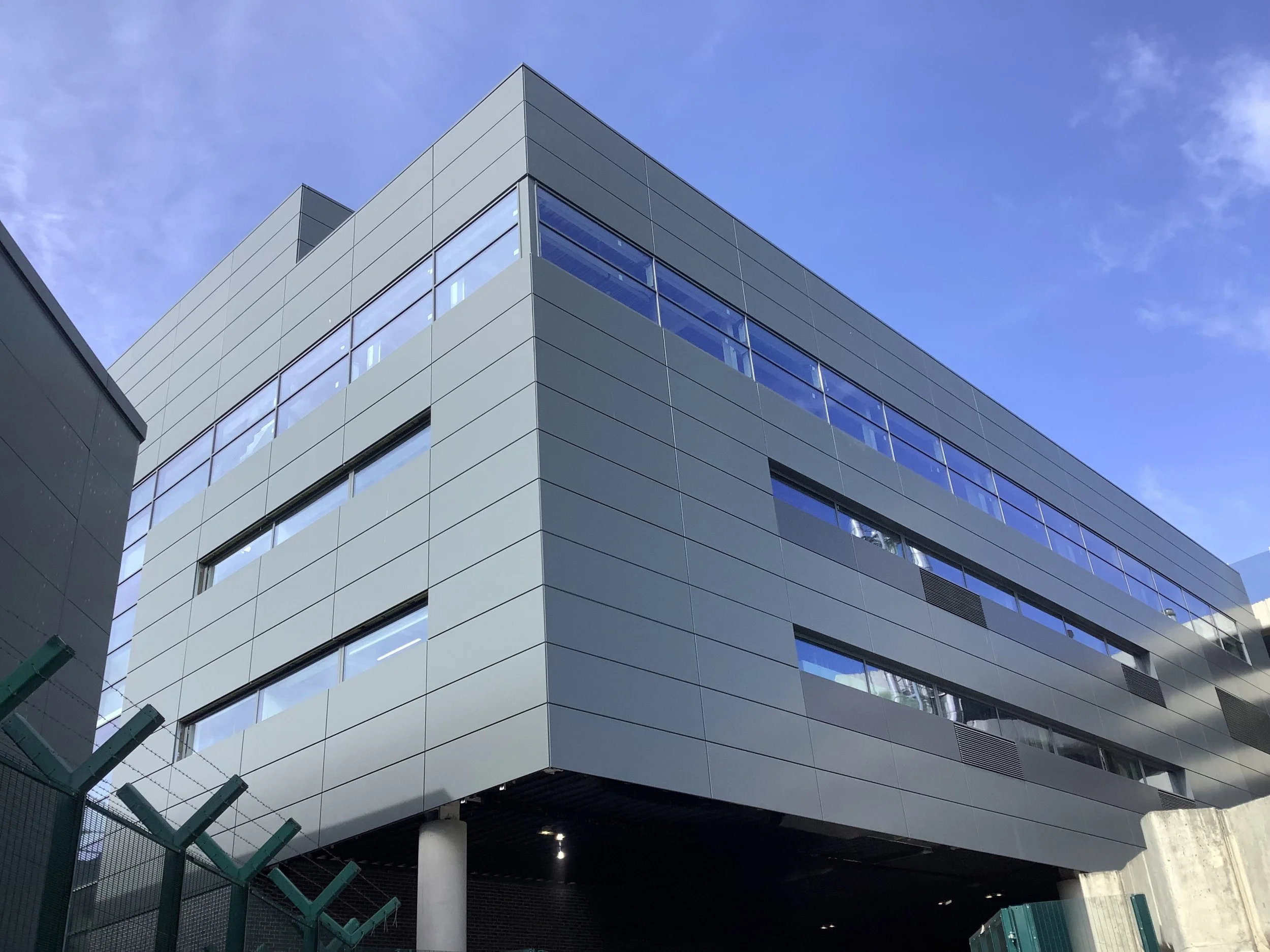

Modern gray building with large windows, black accents, and a clear blue sky.

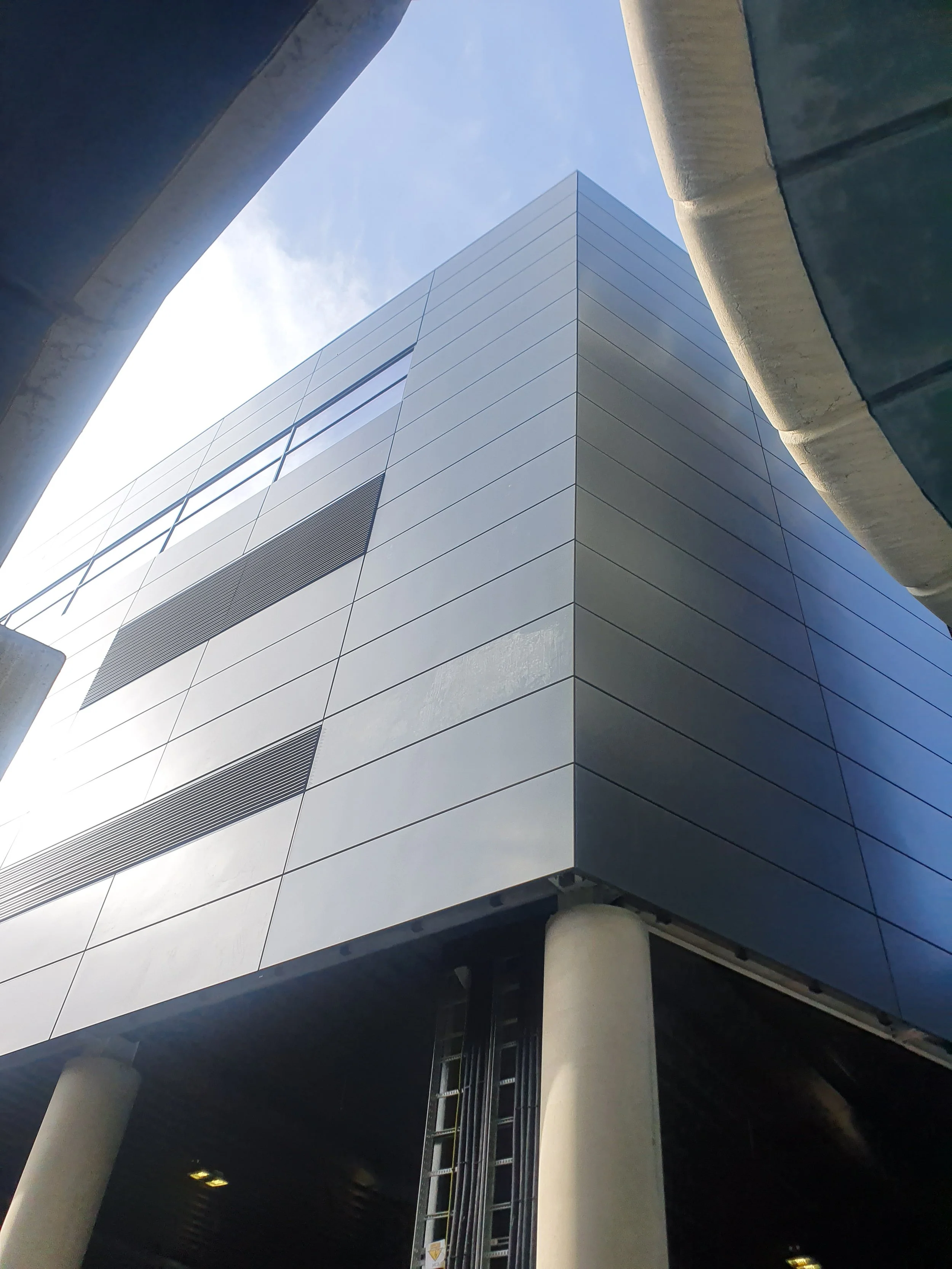

Low-angle view of a modern building with sleek blue and gray panels, supported by concrete columns, against a blue sky with faint clouds.

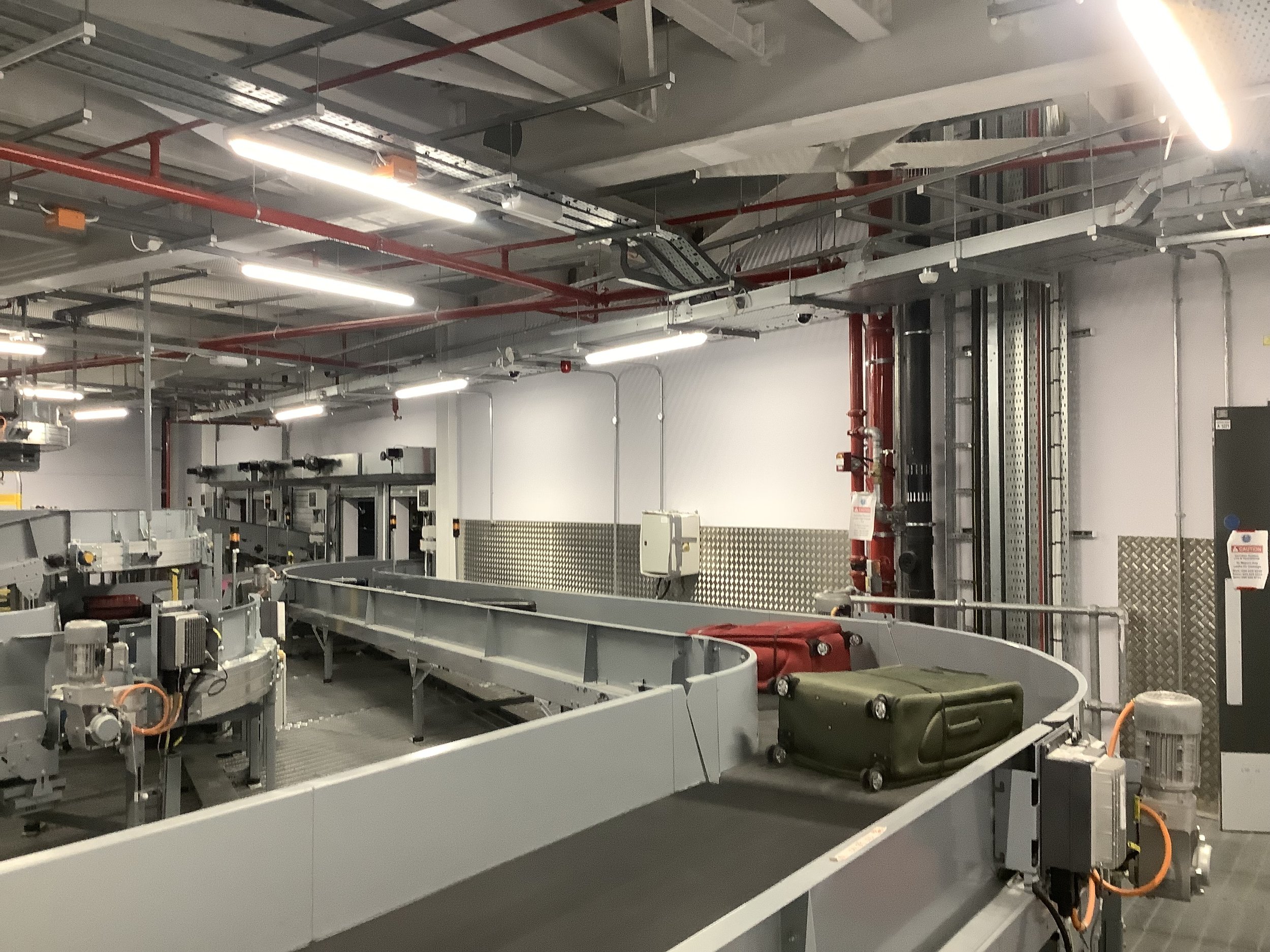

Empty airport baggage claim conveyor belt with two pieces of luggage, one green and one red, and industrial ceiling with lighting and pipes.

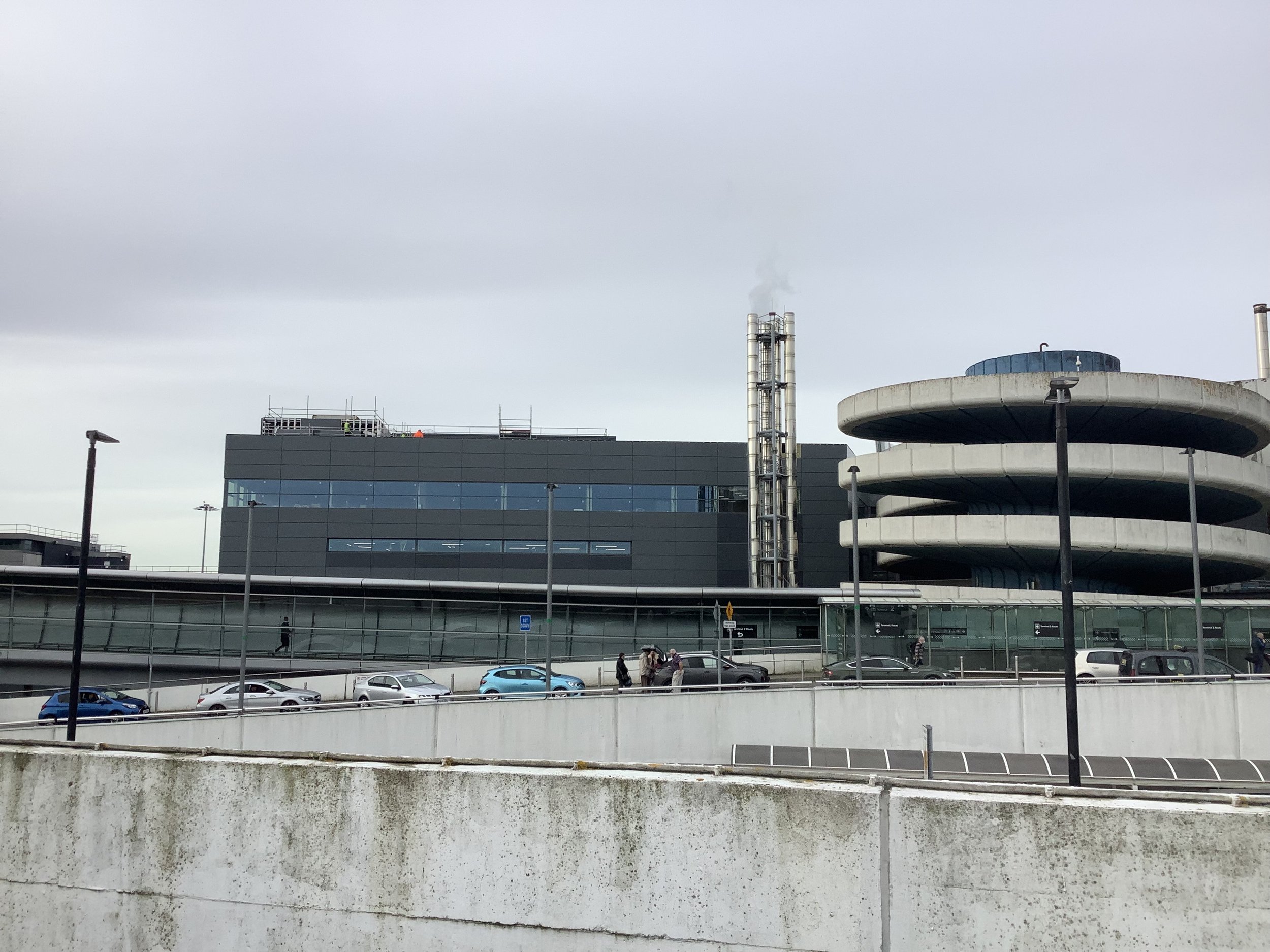

Modern airport terminal building with cars parked outside and overcast sky.

Project Overview

Completed in 2022, this turnkey project delivered an extension to Terminal 1 to house the baggage security systems. This ‘Baggage Control Building’ facilitated a comprehensive upgrade of the existing Baggage Handling System within Terminal 1 and aligning it with the latest European Civil Aviation standards. The new building also allowed for the baggage system to link directly across to Terminal 2 and provided a new top floor suite of offices, a control room, meeting rooms and staff facilities. The construction of the building was undertaken during the challenging times of Covid as well as in the operating in the complex live airside environment of Dublin Airport.

Completed: 2022

Client: daa / Collen Construction

RIAI Stages: 1 to 7

GIA: 724m²

BER: A3

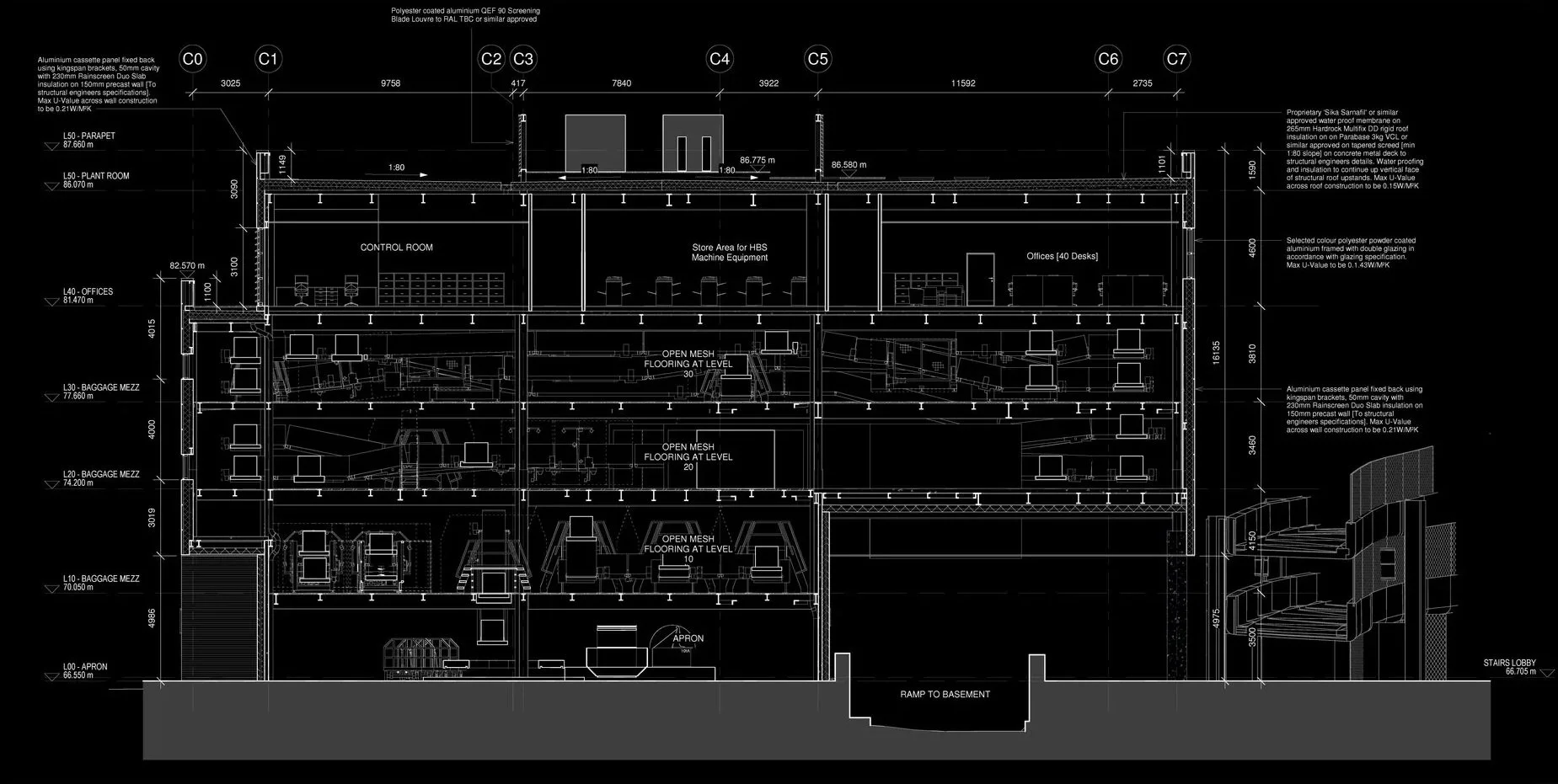

A detailed architectural building plan drawing showing a multi-level structure with various labeled areas such as control room, store area for machine equipment, offices, baggage mezzanine, apron, and stairs lobby. The plan includes measurements, construction notes, and design details.
